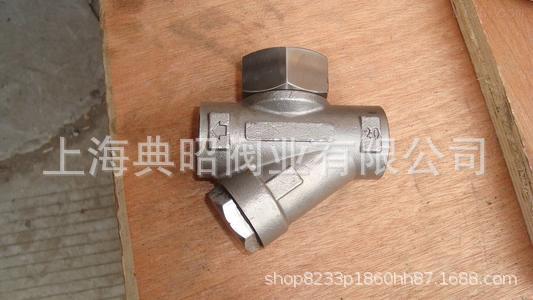

TD16不銹鋼熱動力圓盤式疏水閥TD16 stainless steel thermodynamic steam traps heat disc

TD16 stainless steel thermal power thermal power disc traps for the Y-shape structure is based on thermodynamic principles, Lee has different characteristics thermodynamic steam and condensate, causing pressure changes in kinetic and potential energy movement, started the valve opening and closed, so as to achieve the purpose of steam trap, thermodynamic disc steam traps are widely used in the steam main channel, heating pipes, and a variety of small steam jacket cochlear devices. Widely used in petroleum, pharmaceutical, food and chemical industries.

TD16不銹鋼熱動力圓盤式疏水閥外形結構為Y型，是根據熱動力學原理，利有蒸汽和凝結水的熱動力學不同特征，引起動能和勢能動靜壓變化，啟動閥片開啟和關閉，從而達到阻汽排水目的，熱動力圓盤式蒸汽疏水閥廣泛應用于蒸汽主管道、伴熱管線、夾套蝸及各種小型蒸汽設備。廣泛的用于石油、制藥、食品、化工行業。

Features:1, the valve structure strong, light weight, small size, large pressure range, without any adjustment.2, an air discharge device, quickly ruled out the air at first, to ensure quick start.3, can withstand hot air, strong freezing capacity, install unrestricted.

結構特點：1、本閥結構結實、重量輕、體積小、使用壓力范圍大，不需任何調節。2、具有空氣排放裝置，迅速排除初時空氣,保證快速啟動。3、可承受過熱空氣，抗凍能力強，安裝不受限制。

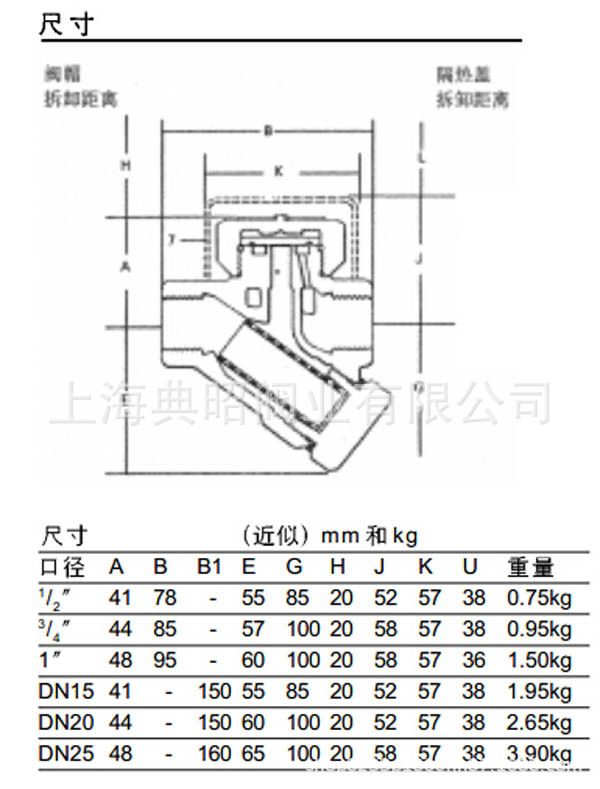

How it works:TD16 Y-type disc trap is the use of steam and condensate flow rate through the valve hole and volume changes in different thermodynamic properties produce, driving the valve seat switch hole, so as to achieve waste gas drainage.結構尺寸：工作原理：典昭TD16 Y型盤式疏水閥是利用蒸汽和凝結水通過閥孔時流速和體積產生變化不同熱力學性質，驅動閥片開關閥座孔，從而達到阻汽排水。
